Good conductivity and low resistivity SHP graphite electrodes

Group SHP graphtie electrode
Min. Order 5 metric ton
Terms of Payment L/C, T/T
Update Time 2018-03-03
Item specifics
Resistivity6.5μΩm
Bulk density1.65g/cm3
Modulus of rupture11Mpa
Young's modulus14Gma
Ash0.3%
CTE2.4*100-6/C
Description

1.The super high power graphite electrode uses  uses Japanese imports of needle coke as raw materials, in accordance with the ultra high power graphite electrode production process,crushing,screening,dosing,kneading,forming,baking,high pressure impregnation,the second time of baking,graphitization and machining refined.
2,Super high power nipple uses Japanese imports of needle coke,three times of impregnation and four times of baking processes.


3.Specification:

ITEM NAME REQURED SPECIFICATION
GRAPHITE ELECTRODEResistivity (μΩ.m)Electrode<6.5
Nipple5.8
Bulk Density(g/cm3)Electrode1.62G/CM3-1.65G/CM3
Nipple1.68G/CM3-1.72G/CM3
Modulus of rupture(Mpa)Electrode12
Nipple18
Young's modulus(Gpa)Electrode14
Nipple18
Ash(%)Electrode0.30%
Nipple0.30%
CTE(100-600℃)10-6/Electrode2.2
Nipple2.0

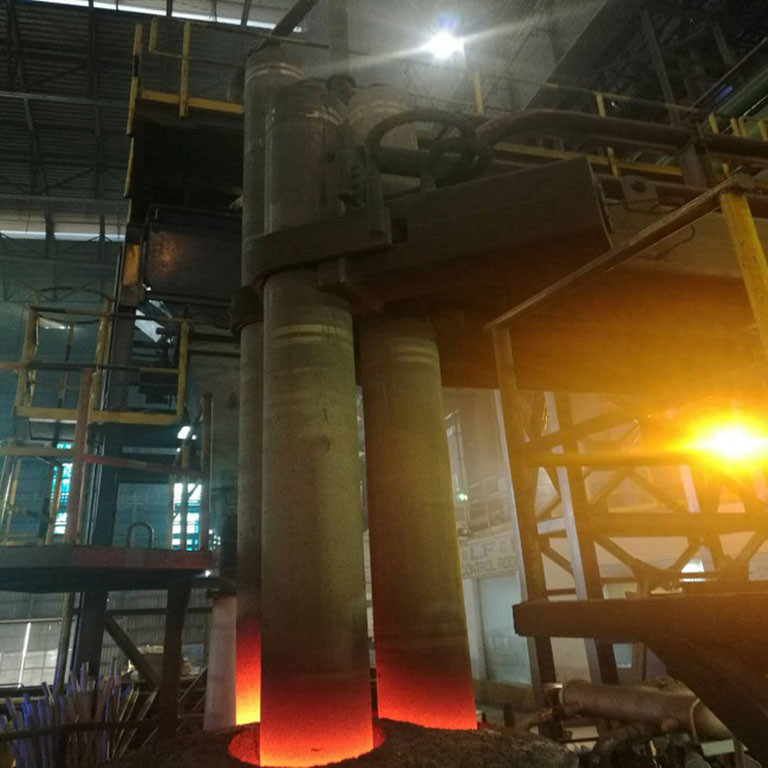

4.Use for steel making:

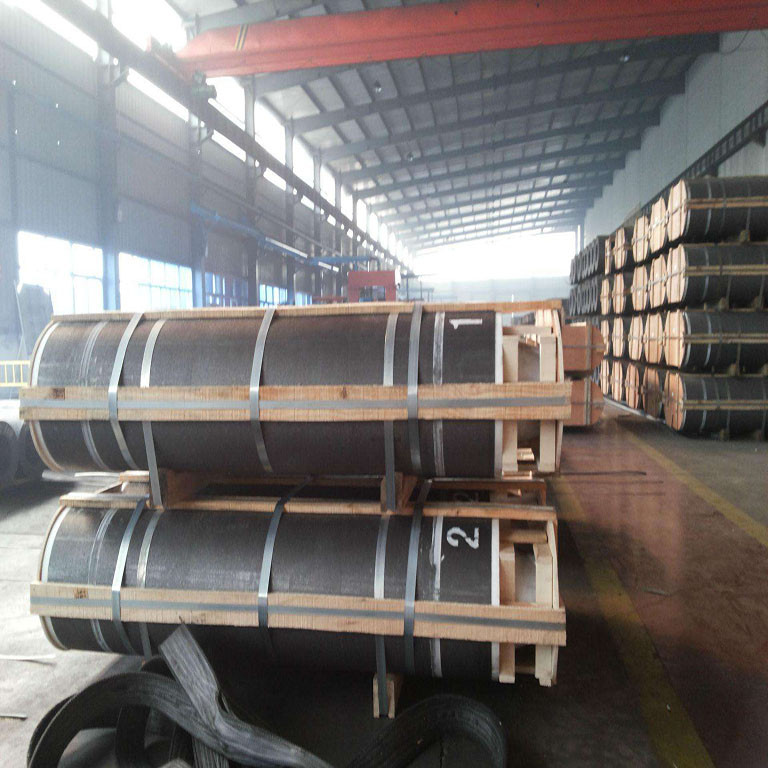

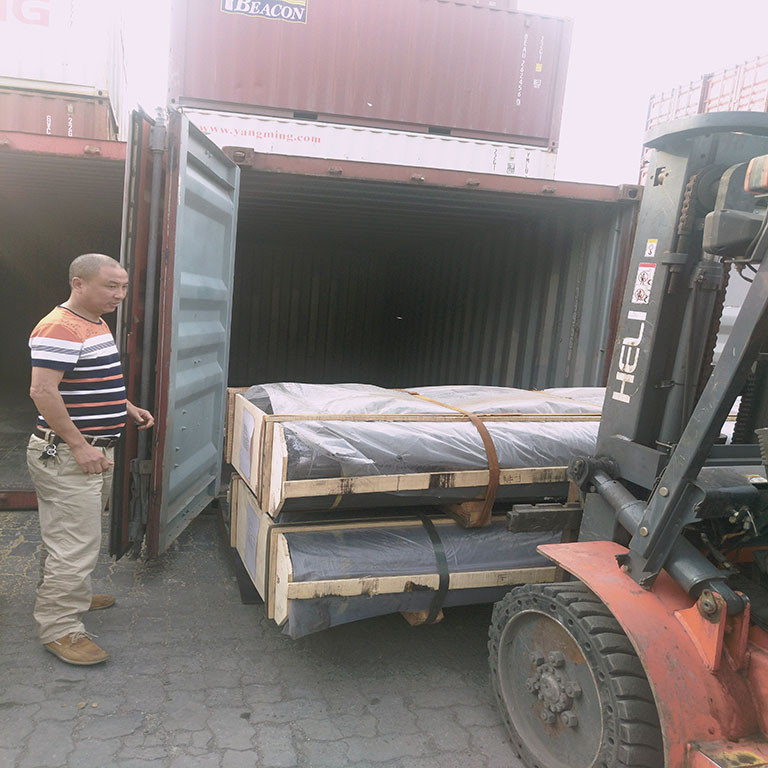

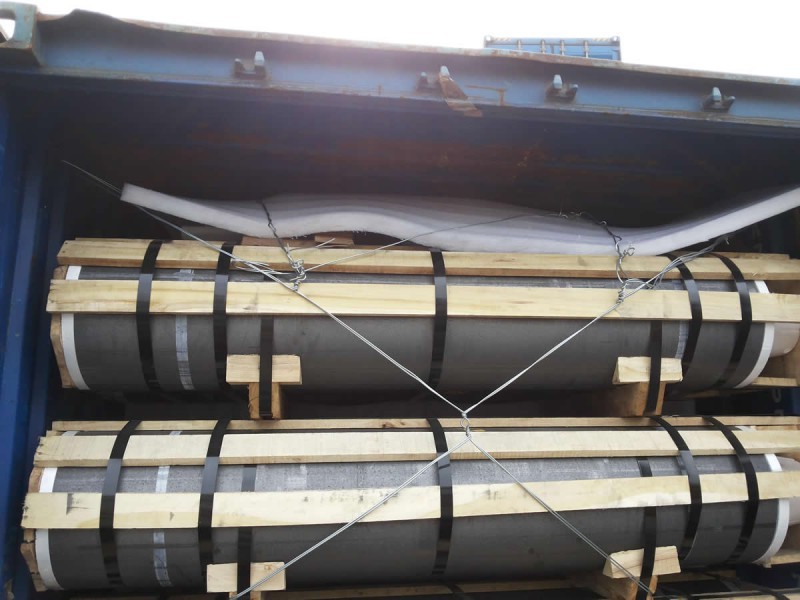

5.GE packing and loading:




6.Contact Way:
