Well conductivity Regular graphite electrodes

Group RP graphite electrode
Min. Order 5 metric ton
Terms of Payment L/C, T/T
Update Time 2018-03-03
Item specifics
Resisitivity8.5μΩm
Bulk density1.53g/cm3
Modulus of rupture8.5Mpa
young's modulus9.3Gma
Ash0.5%
CTE2.9*100-6/C
Description

1.The regular power graphite electrode uses Fushun petroleum coke and asphalt as raw materials, in accordance with the regular power graphite electrode production processes,calcination,dosing,kneading,forming,baking,graphite and machining refined.

2.The nipple uses one time of impregnation and two time of baking processes.


3.Specification:

ITEM NAME

REQURED SPECIFICATION

GRAPHITE ELECTRODE

Resistivity (μΩ.m)

Electrode

<8.5

Nipple

<6.5

Bulk Density(g/cm3)

Electrode

1.52G/CM3

Nipple

1.70G/CM3

Modulus of rupture(Mpa)

Electrode

8.5

Nipple

15.0

Young's modulus(Gpa)

Electrode

9.3

Nipple

14.0

Ash(%)

Electrode

0.5%

Nipple

0.5%

CTE(100-600℃)10-6/

Electrode

2.9

Nipple

2.8


4.GE for steel making:

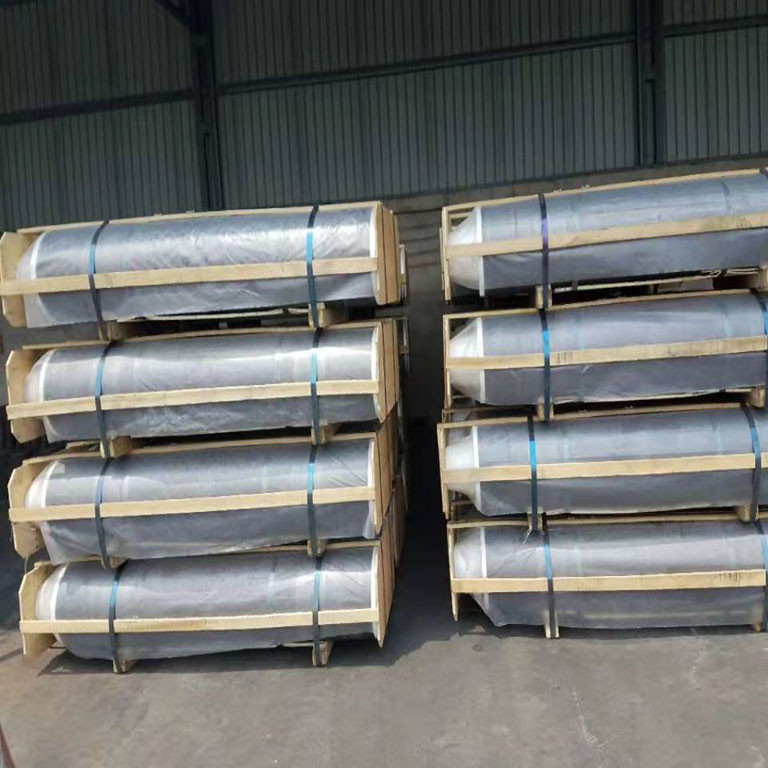

5.GE packing and loading:



6.Contact way:
